Description

Grid+ V3 CAM-powered 6-Channel Digital Fan Controller
Finding the right mix between cooling and noise reduction can be complex and time-consuming, even for experienced builders. GRID+ provides a smart solution for advanced digital fan control: you can easily install and control your fans using the intuitive CAM dashboard.

Prefer to set your own fan profiles? CAM enables that, too. With GRID+, you won’t have to choose between silence and cooling–you’ll get the perfect balance of both.

SMART FAN CONTROL

If manual fan control is your preference, GRID+ V3 supports both voltage and PWM control, and you can choose a separate fan profile for each channel: Silent, Performance, Fixed, or Custom. Label each fan channel, build your own custom fan curves, and tune your system using the intuitive CAM dashboard.

SIX CHANNELS

Each channel automatically detects if you’ve connected a 3-pin fan or 4-pin PWM fan. GRID+ V3 includes two Y-splitter cables for installing additional fans.

PURE SILENCE

For nearly silent operation, your custom profiles can use the 0dB feature on Grid+ V3 to disable fans completely when temperatures are within the safe limits of your build.

EASY AND DISCREET INSTALLATION

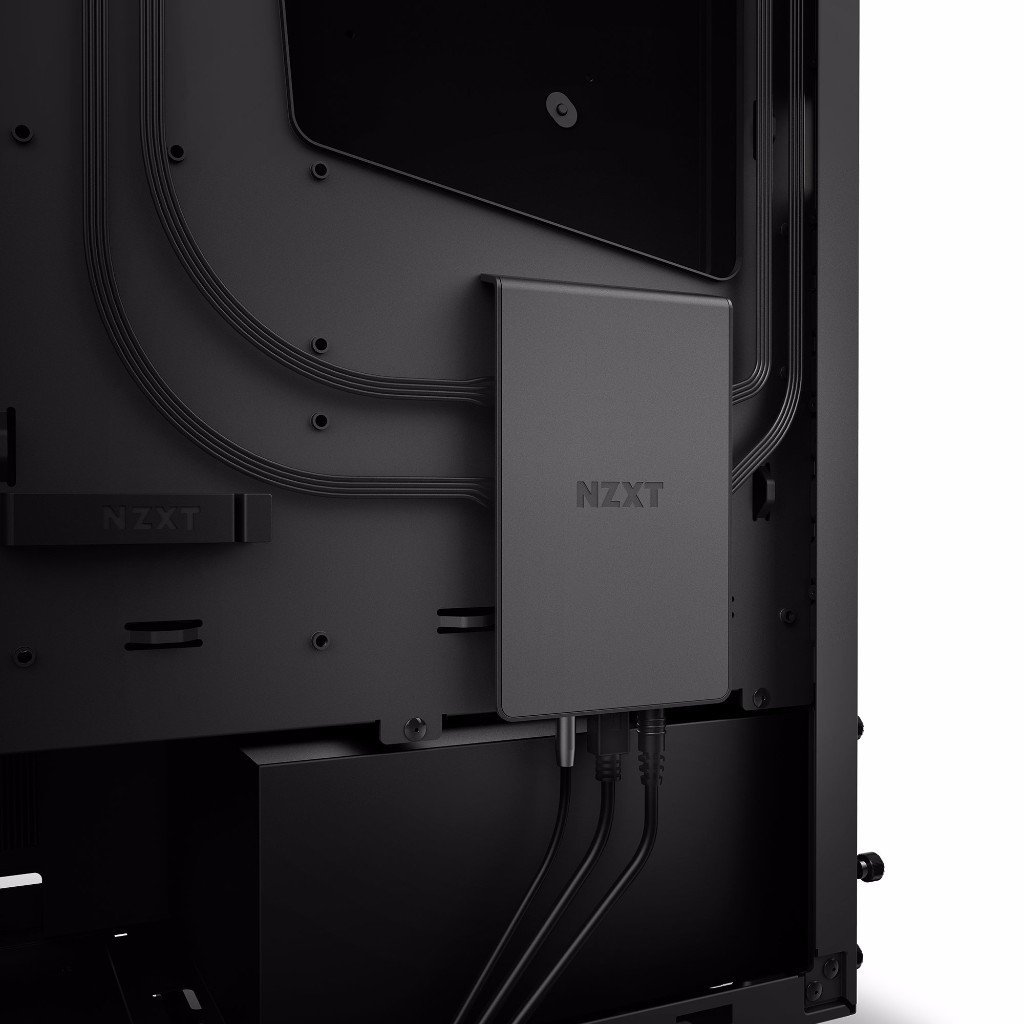

GRID+ V3 features a slim profile, measuring only 15mm in height, and includes a magnetic back, making it quick and easy to install; it even fits behind most motherboard trays.

ADAPTIVE NOISE REDUCTION

Our unique Adaptive Noise Reduction uses an on-board noise sensor to measure and learn the specifics of your system to find the ideal balance between fan speed and cooling. With up to a 40% reduction in fan noise level, you won’t need to waste time designing custom fan curves. Leveraging machine learning to improve its results, this will ensure your fan settings are always optimal, even if you change hardware.

Specifications
Dimensions

125 x 78 x 15 mm (GRID+ Unit)
35 x 15 x 10 mm (Noise Detection Module)

Material(s)

Steel, Plastic, PCB

Weight

147g

Mounting

Magnet or 3M Dual Lock

Control Method

Software via CAM

Fan Channel Quantity

6

Fan Support

3-pin or 4-pin PWM

Output Channel Voltage

5W Max

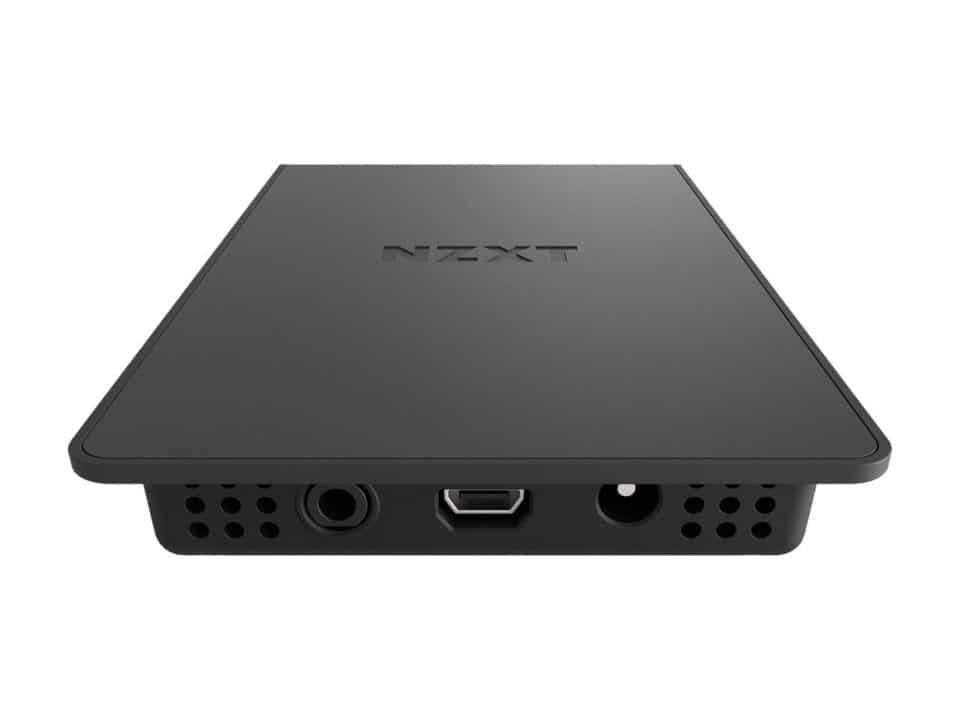

Input Connector

12V with 4-pin Molex
3.5mm Audio Jack for Noise Detection Module
Micro-USB

Included Accessories

1 x Noise Detection Module
1 x 450mm Extension Cable for Noise Detection Module
1 x 600mm Micro-USB cable
1 x Molex Power Cable
2 x 1 to 3 Fan Splitter Cable
5 x 100mm Zip Tie
2 x 40x13mm 3M Velcro Tape
1 x 15x13mm 3M Velcro Tape

Model Number

AC-GRDP3-M1

EAN

5060301693771

UPC

815671013453

System Requirements

PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM.

Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service.
