Description

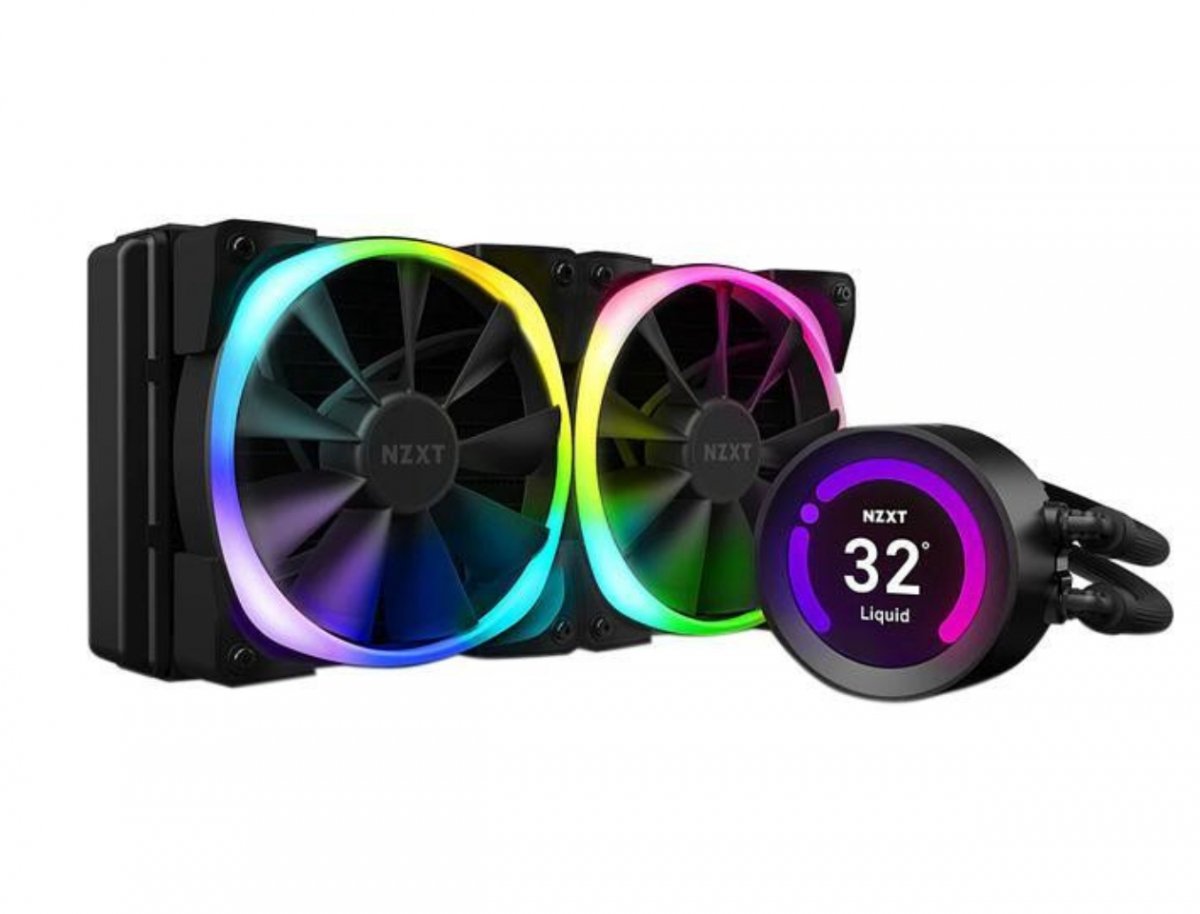

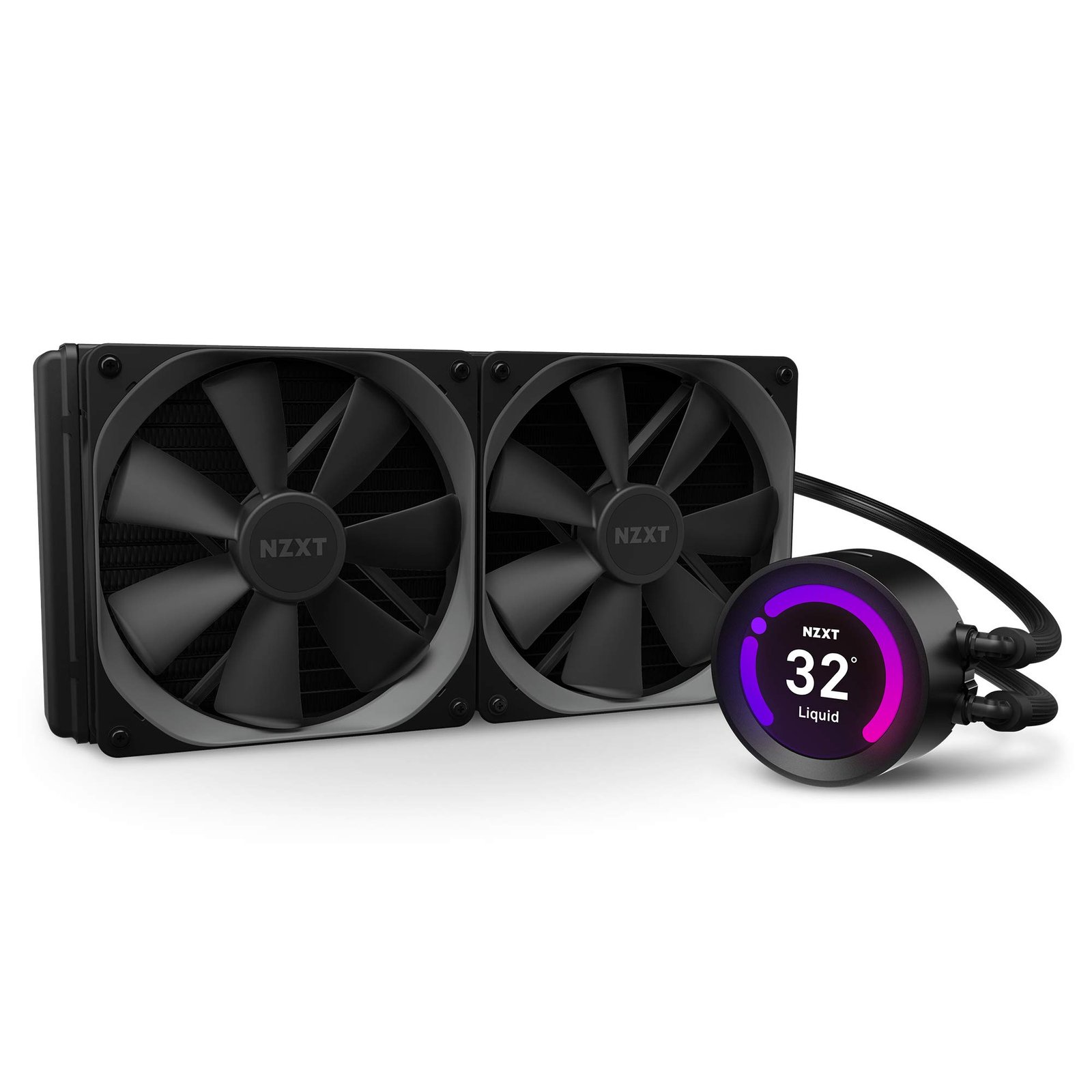

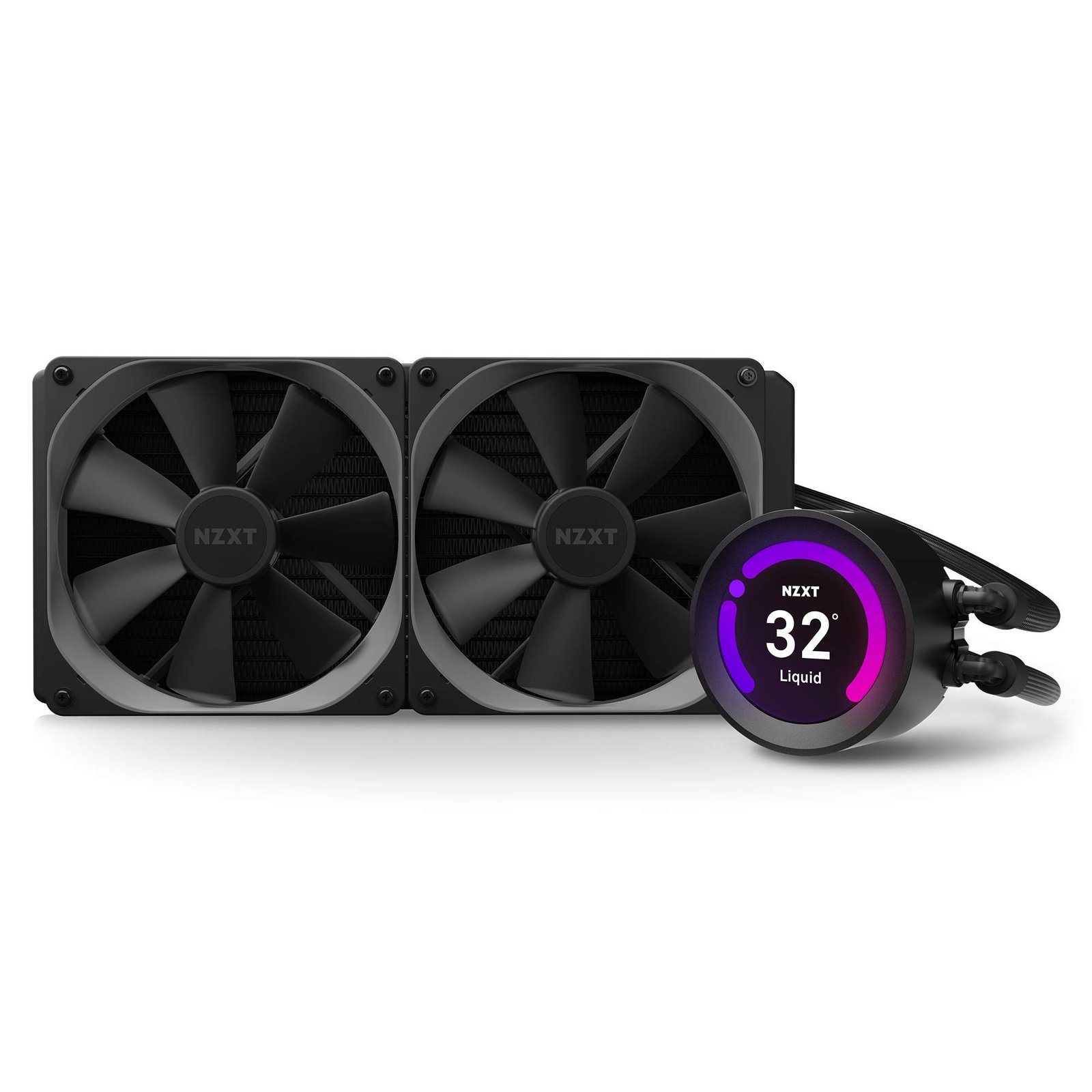

NZXT Kraken Z63 280mm AIO Liquid Cooler with Customizable LCD Display
The all-new Kraken Z Series lets you personalize your all-in-one liquid cooler like never before. Through CAM’s unique software interface, you can do more than simply fine-tune settings; you can now display your favorite animated gifs or CAM system information, allowing for total customization. Backed by a 6-year warranty, the Kraken Z series provides superior performance in liquid cooling, simple installation, and a look that is uniquely your own.

With a bright, 2.36” LCD screen capable of displaying 24-bit color, you can now completely customize the look of your CPU cooler. Whether it’s a funny gif or CAM data, you can use your Kraken to express yourself in an exciting new way.

CAM’s elegant, user-friendly software makes you the master of your PC. With simple-to-use, intuitive controls, you can manage your Kraken’s performance and appearance with ease.

The included Aer P radiator fans are designed for liquid-cooling perfection. Featuring a chamfered intake and fluid dynamic bearings, they deliver silent operation, long-term reliability, and powerful cooling performance.

Fine nylon mesh sleeves strengthen the rubber tubing, providing durability and protection against mishandling. With the fully programmable display, the pump can be rotated* to fit the needs of your motherboard without affecting the direction of the logo or image.

Kraken Z Series

LIQUID COOLER WITH LCD DISPLAY

The all-new Kraken Z Series lets you personalize your all-in-one liquid cooler like never before. Through CAM’s unique software interface, you can do more than simply fine-tune settings; you can now display your favorite images and animated gifs, or CAM system information, allowing for total customization.

CUSTOMIZE YOUR BATTLESTATION

With a bright, 2.36” LCD screen capable of displaying 24-bit color, you can now completely customize the look of your CPU cooler with custom images, gifs, or CAM data.

STAY IN CONTROL

CAM’s elegant, user-friendly software makes you the master of your PC. With simple-to-use, intuitive controls, you can manage your Kraken’s performance and appearance with ease.

INCREDIBLE PERFORMANCE

The included Aer P radiator fans are designed for liquid-cooling perfection. Featuring a chamfered intake and fluid dynamic bearings, they deliver silent operation, long-term reliability, and powerful cooling performance.

Specifications
Water Block

Dimensions(LxWxH): 79 x 79 x 52 mm
Material: Block: Copper, Housing: Plastic
Pump

Motor Speed & Power: 800 – 2,800 + 300 RPM, 12V DC, 0.3A
Radiator

Dimensions: 143 x 315 x 30mm
Material: Aluminum
Tube

Length: 400mm
Material: Ultra-low Evaporation Rubber with Nylon Braided Sleeve
Cap

Display Orientation: Software adjustable Default and -90° orientation
Display Panel Active Area: 2.36” (60mm) diameter
Display Color: 24-bit true color LCD
Display Resolution: 320 x 320 px
Display Brightness: 650 cd/m²
Fans

Quantity: 2
Dimension: 140 x 140 x 26mm
Speed: 500-1,800 + 300 RPM
Air Flow: 2 7. 2 7 – 9 8 .1 7 C F M
Air Pressure: 0.21 – 2.71mm-H₂O
Noise: 21-38dBA
Bearing: Fluid Dynamic Bearing
Power Consumption: 12V DC, 0.38A, 4.56W
Connector: 4-pin PWM
Life: 60,000 hours / 6 Years
Compatible Socket & CPU Intel Socket

LGA 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD Socket AM4, sTRX4*, TR4*(*Threadripper bracket not included)
AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper
Model Number

RL-KRZ 63-01
UPC

815671015297
EAN

5060301695461
