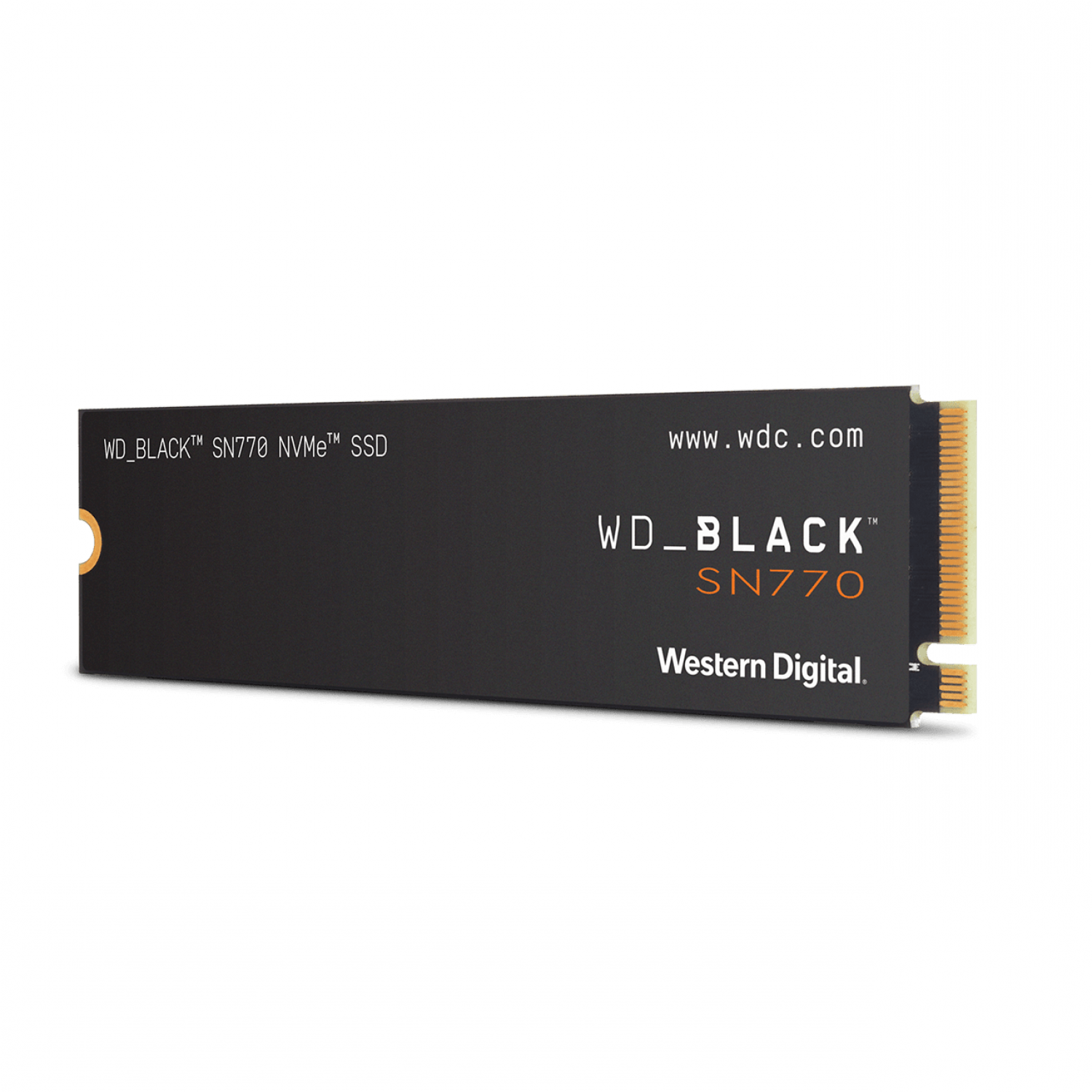

WD Black 1TB M.2 PCIE
PERFORMANCE MATTERS
Live life in the fast lane, whether you’re looking to boost your system’s overall responsiveness or load games and levels quickly, the WD BLACK drive cuts down on your wait time to get back into action and gets you ahead of the game.

SLEEK HEATSINK DESIGN
Every system is not created equal. From different graphics cards and CPUs to DRAM and storage, PCs all differ in performance and appearance. The WD BLACK SSD’s sleek and modern heatsink model goes well with desktop PC builds that support the M.2 form factor and is the perfect component to complement systems with RGB lighting and other cooling technologies, such as water cooling.

SPACE TO PLAY
At the core of the WD BLACK drive is its revolutionary NAND technology. By doubling the storage density from its previous generation, our 3D NAND pushes the limitations of storage and showcases the amazing feat of NAND innovation. This means extended capacity on a single-sided drive that’s roughly the size of a gumstick, enough to store your large files and video games.

Specifications
Interface : PCIe Gen3 8Gb/s, up to 4 lanes

Formatted Capacity : 1TB

Performance
Sequential Read MB/s up to (Q=32, T=1) : 3,430

Sequential Write MB/s up to (Q=32, T=1) : 3,000

Random Read 4KB IOPS up to (Q=32, T=8) : 515K

Random Write 4KB IOPS up to (Q=32, T=8) : 560K

Endurance (TBW) : 600

Power
Peak Power (10us) : 2.8A

PS3 (low power) : 100mW

Sleep (PS4) (low power) : 2.5mW

Reliability
MTTF : 1,750,000 hours (Telcordia SR-332, GB, 40oC)

Environmental
Operating Temperature : 32oF to 158oF (0oC to 70oC)

Non-operating Temperature : -67oF to 185oF (-55oC to 85oC)

Certifications : FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick

Limited Warranty : 5 years

Physical Dimensions – M.2 2280
Form Factor : M.2 2280-S3-M

Length : 80 ± 0.15mm

Width : 22 ± 0.15mm

Height : 2.38mm

Weight : 7.5g ± 1g

Ordering Information
Without Heatsink : WDS100T3X0C-00SJG0
