Description

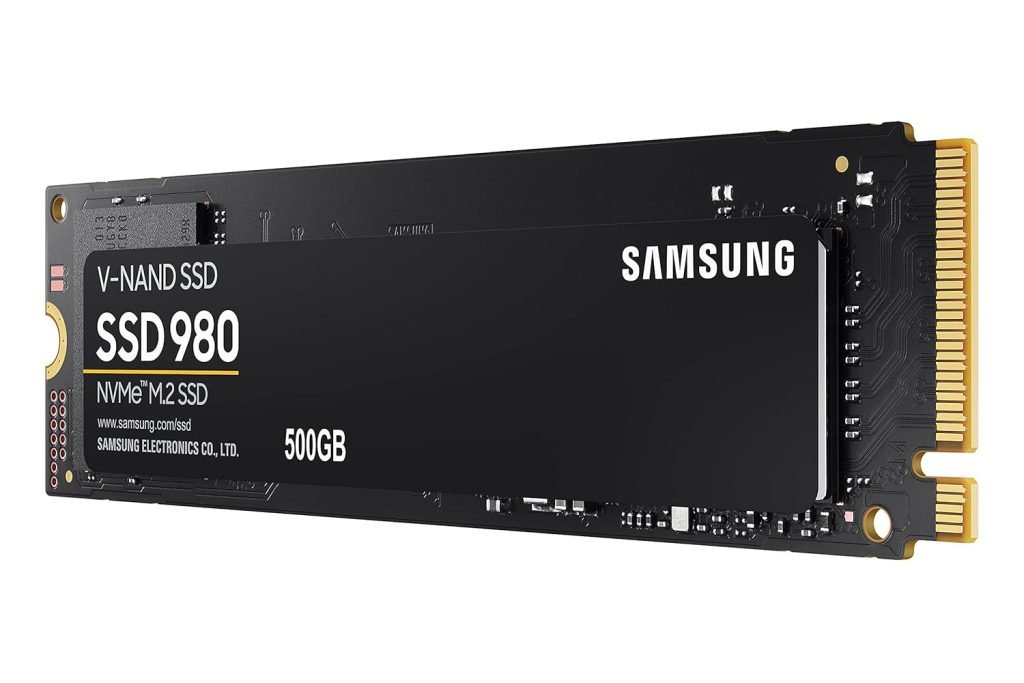

Samsung 500GB 980 PCIe 3.0 NVMe M.2 SSD, 3500MB/s
Product Code: MZ-V8V500BW

Brand Name
Samsung

Disk Space
500 GB

Disk Type
M.2, NvMe

General Feature
ApplicationClient PCs
Capacity500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form FactorM.2 (2280)
InterfacePCIe Gen 3.0 x4, NVMe 1.4
Dimension (Pack: WxHxD)80.15 x 22.15 x 2.38 (mm)
WeightMax 8.0 g Weight
Storage MemorySamsung V-NAND 3-bit MLC
ControllerSamsung Pablo Controller
Cache MemoryHMB(Host Memory Buffer)
Special Feature
TRIM SupportSupported
S.M.A.R.T SupportSupported
GC (Garbage Collection)Auto Garbage Collection Algorithm
Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN SupportNot supported
Device Sleep Mode SupportYes
Performance
Sequential ReadUp to 3,100 MB/s * Performance may vary based on system hardware & configuration
Sequential WriteUp to 2,600 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)Up to 400,000 IOPS* Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)Up to 470,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)Up to 54,000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)Average: 4.3 W*Maximum: 5.9 W (Burst mode) Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage3.3 V ± 5 % Allowable voltage
Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
Operating Temperature0 – 70 ℃ Operating Temperature
Shock1,500 G & 0.5 ms (Half sine)
