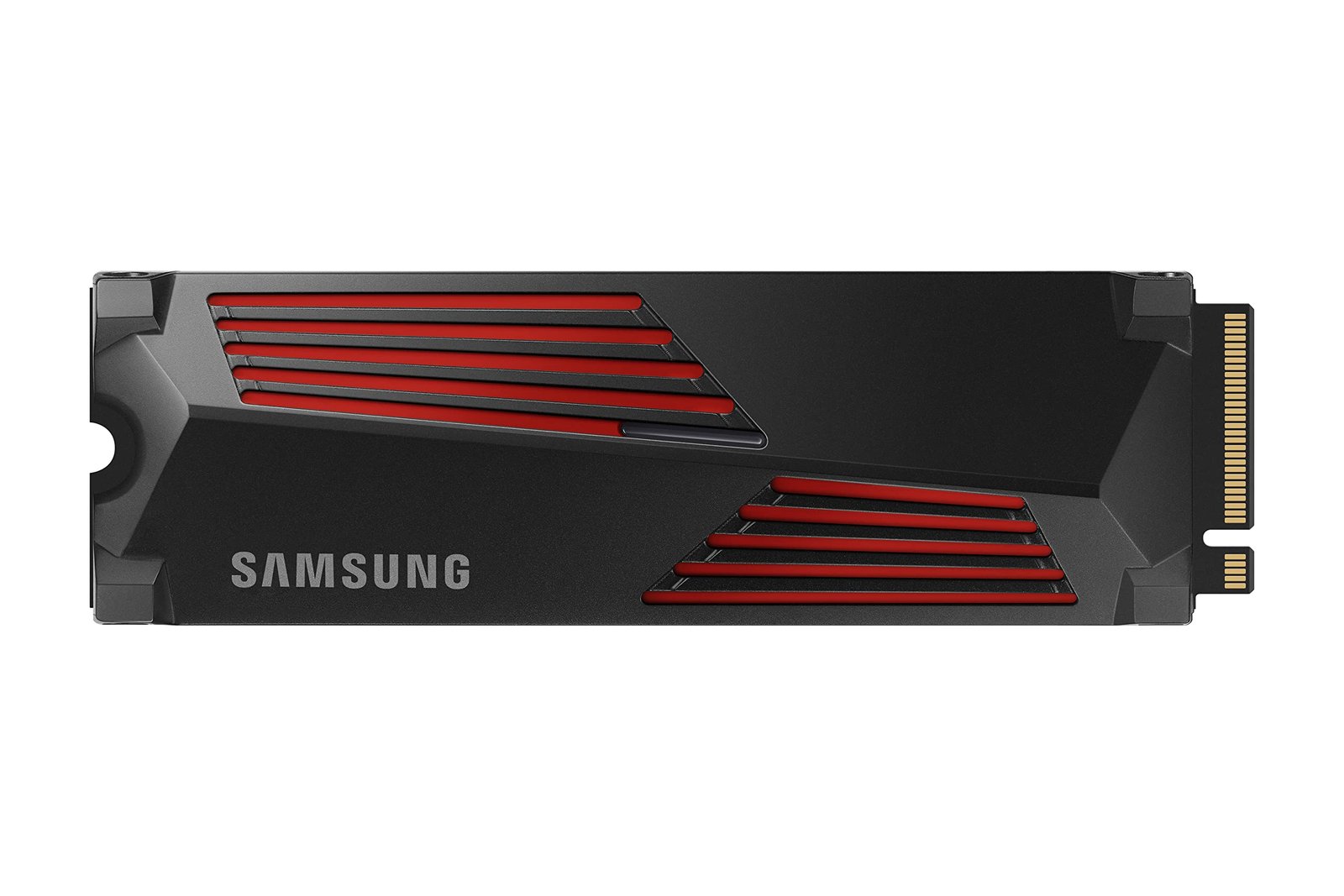

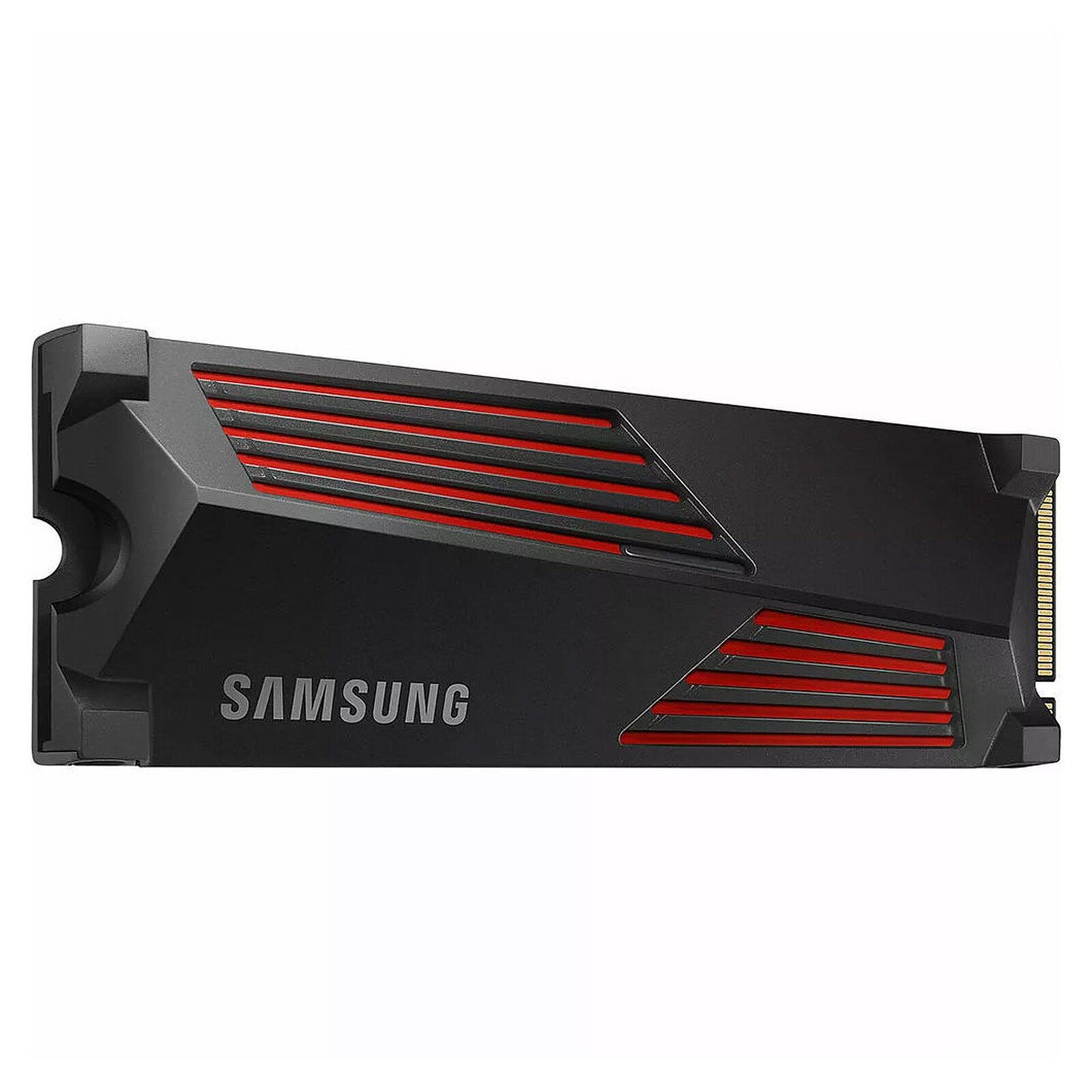

SAMSUNG 2TB 990 PRO with Heatsink NVMe M.2 SSD PS5 – 7450MB/s
Part # MZ-V9P2T0GW
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Application | Enterprise, Console |
| Interface | PCIe Gen 4.0 x4 NVMe 2.0 |
| Capacity | 1 TB |
| Technology Type | SSD |
| Speed | Read 7450 MB/s | Write 6900 MB/s |
| Warranty | 5 Year Manufacturer Warranty (View More Information) |
-
PCIe Gen 4.0 x4, NVMe 2.0
-
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
-
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
5-Year Limited Warrantyor 1200 TBW Limited Warranty
-
Client PCs, Game Consoles
-
Max 28.0g Weight
-
80 x 24.3 x 8.2 mm (with heatsink)
General Feature
-
ApplicationClient PCs, Game Consoles
-
Capacity2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form FactorM.2 (2280)
-
InterfacePCIe Gen 4.0 x4, NVMe 2.0
-
Dimension (WxHxD)80 x 24.3 x 8.2 mm (with heatsink)
-
WeightMax 28.0g Weight
-
Storage MemorySamsung V-NAND 3-bit MLC
-
ControllerSamsung in-house Controller
-
Cache MemorySamsung 2GB Low Power DDR4 SDRAM
Special Feature
-
TRIM SupportSupported
-
S.M.A.R.T SupportSupported
-
GC (Garbage Collection)Auto Garbage Collection Algorithm
-
Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN SupportNot supported
-
Device Sleep Mode SupportYes
Performance
-
Sequential ReadUp to 7,450 MB/s * Performance may vary based on system hardware & configuration
-
Sequential WriteUp to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4 KB, QD32)Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Read (4 KB, QD1)Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4 KB, QD1)Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
Environment
-
Average Power Consumption (system level)*Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
-
Operating Temperature0 – 70 ℃ Operating Temperature
-
Shock1,500 G & 0.5 ms (Half sine)
Accessories
-
Installation KitNot Available
Software
-
Management SWMagician Software for SSD management
