Description

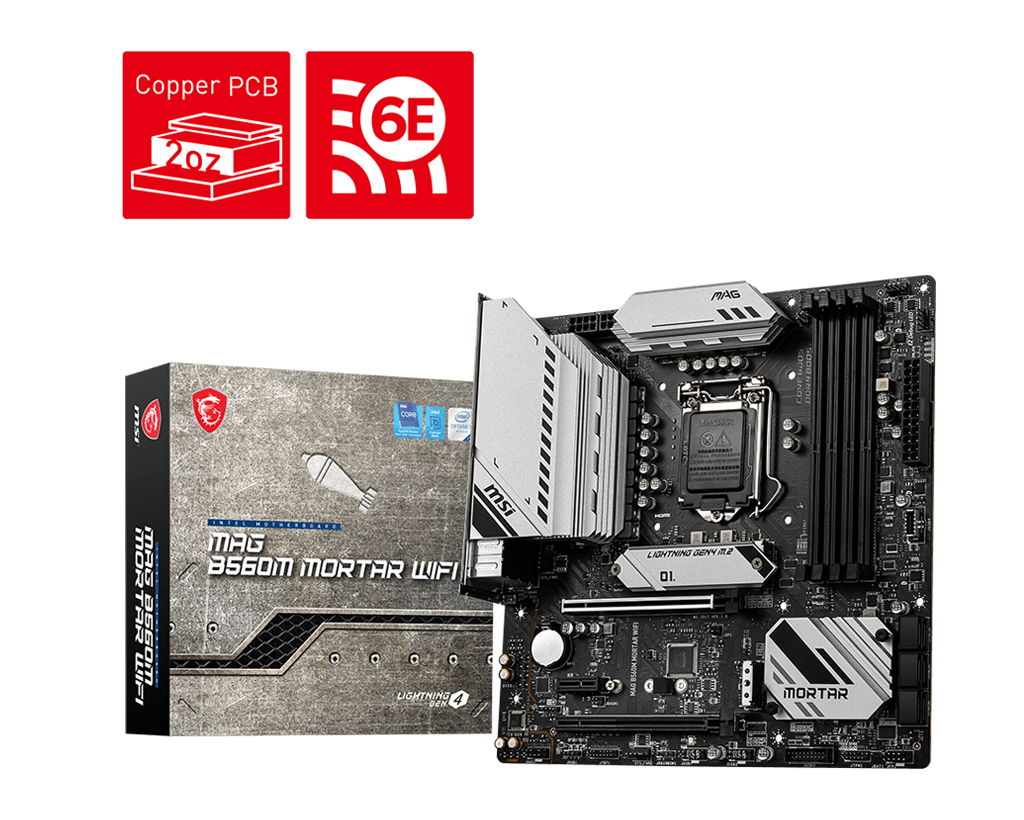

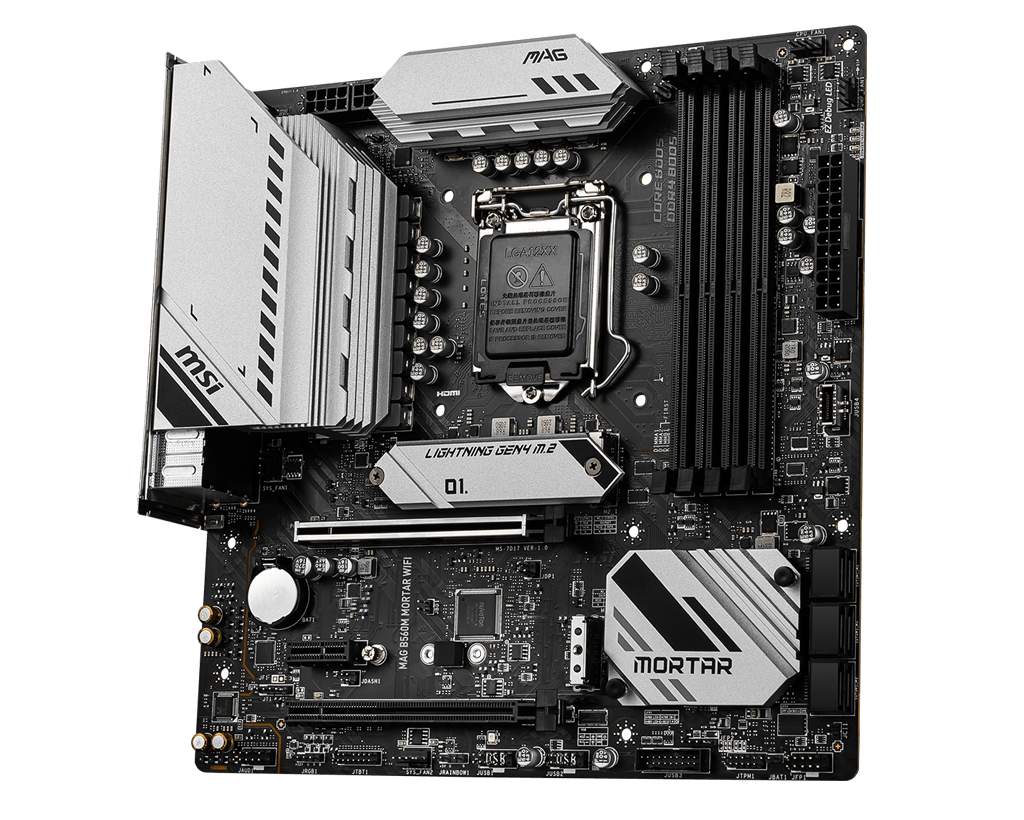

MSI MAG B560M MORTAR WIFI Micro ATX Motherboard

Premium Hardware design
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed coutless designs, evaluated a wide selection of high quality components, and developed Products for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

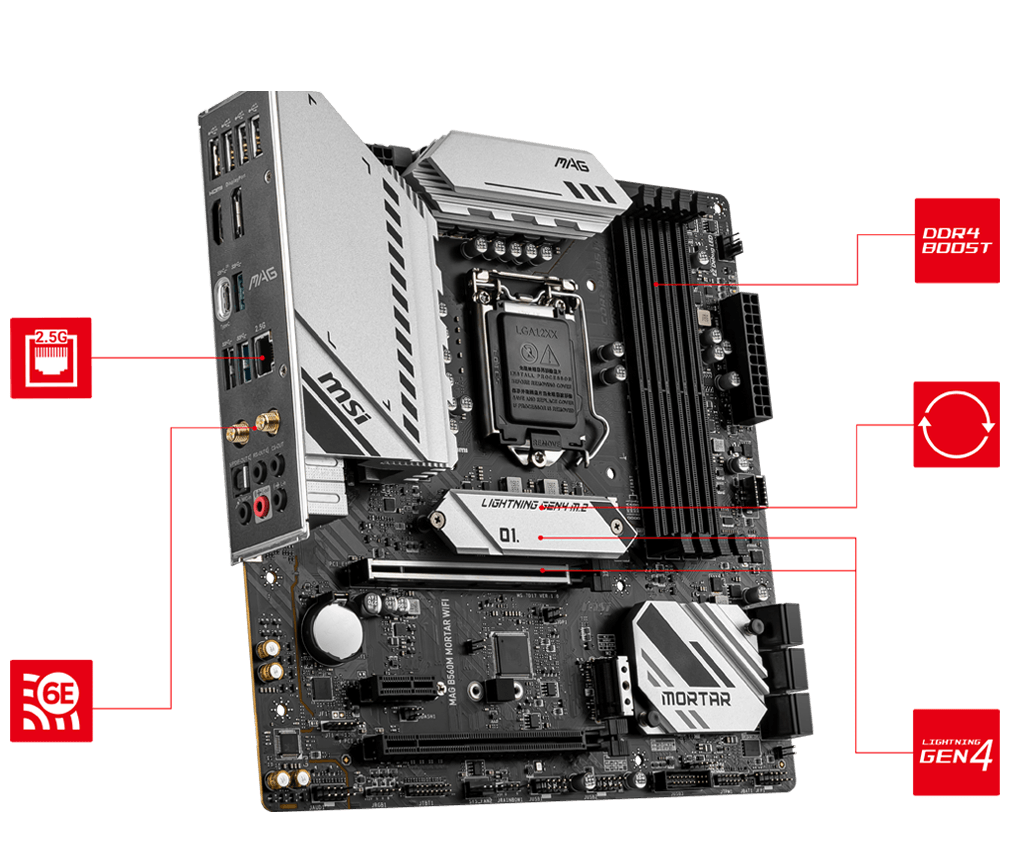

LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FAST AND FUTURE-READY STORAGE
MSI MAG SERIES motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
CONNECTIVITY
MSI motherboards are builr with a variety of connectors to satisfy gamers. Enhanced audio, advanced Lan networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI LAN MANAGER
Automatically prioritizes games above other applications
Allows you to change applications’ traffic priority
Allows you to customize bandwidth for each application
Specifications
CPU (MAX SUPPORT) : i9
SOCKET : 1200
CHIPSET : Intel® B560 Chipset
DDR4 MEMORY : 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL : Dual
DIMM SLOTS : 4
MAX MEMORY (GB) : 128
PCI-E X16 : 2
PCI-E X1 : 1
SATAIII : 6
M.2 SLOT : 2
LAN : 1x Realtek® 8125B 2.5G LAN
WIFI & BLUETOOTH : Intel® Wi-Fi 6E AX210
USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) : 1(Gen 2×2, Type C), 3(Gen 1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR) : 4
AUDIO PORTS (REAR) : Realtek® ALC897 Codec
DISPLAYPORT : 1
HDMI : 1
FORM FACTOR : Micro-ATX
CROSSFIRE : Y
OPERATING SYSTEM : Support for Windows® 10 64-bit
