Description

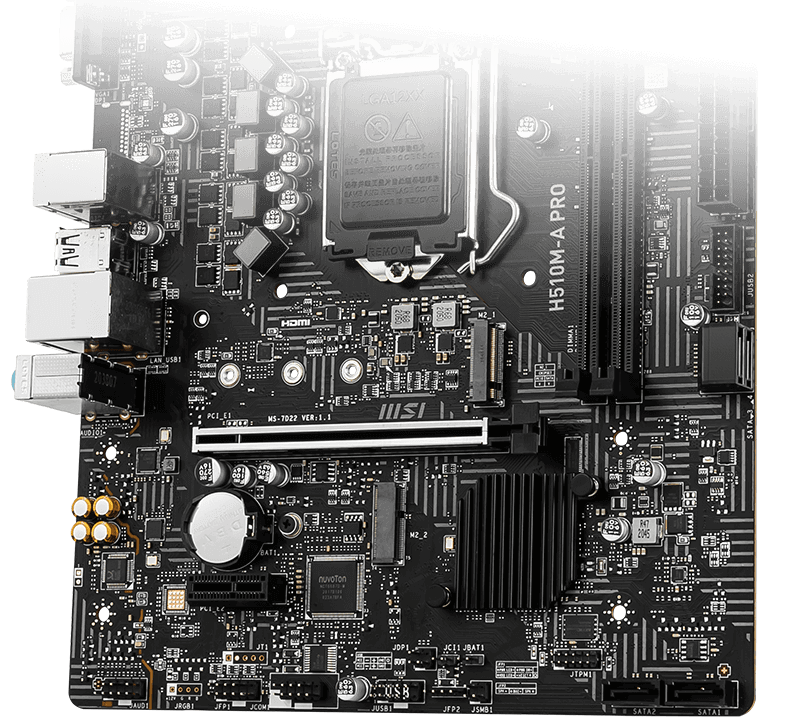

MSI H510M PRO LGA 1200 Micro ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Froze AI Cooling

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Performance mode
Silent Mode
Manual Mode
Fully Fan Control

Fully Controllable in Bios and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Design

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

Compatibility

11th Gen Core Processors Support
Extreme Stability & Compatibility Testing for Memory
Windows 10 Certified
Reliable component

Steel Armor

Fortify Your System With PCI-E Steel Armor

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Double ESD Protection

Ultimate Motherboard Protection

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard

Connectivity

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

LAN

Intel LAN

Low Latency Gaming LAN Powered By Intel

Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.

LAN Manager

Optimize Network for Lower Latency!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN Manager

• Allows you to change applications’ traffic priority

• Allows you to customize bandwidth for each application

Storage

Fast and Future-Ready Storage

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

USB

USB 3.2 Gen 1

Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

Performance

Lightning Gen 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. Pie 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

DDR4 Boost

Extreme Stability & Compatibility Testing

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

Audio Boost

Dedicated High Definition Audio Processor

Make sure you enjoy the purest sound quality in both stereo and surround sound.

High Quality Audio Capacitors

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HD Audio Connectors

Keep you sound perfect by transmit your audio with pure digital signal.

Isolated Audio Design

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

Separated Audio Layers for Clean Left & Right Channels

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

De-Pop Protection

Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

BIOS & Software

MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color

Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

Hardware Monitor

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

Search & Favorites

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

Security

System Safety

All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.

Secure Boot

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

Specifications
CPU (MAX SUPPORT) : i9
SOCKET : 1200
CHIPSET : Intel® H510 Chipset
DDR4 MEMORY : 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
MEMORY CHANNEL : DUAL
DIMM SLOTS : 2
MAX MEMORY (GB): 64
PCI-E X16 : 1
PCI-E GEN : GEN 4
PCI-E X1 : 1
SATAIII : 4
M.2 SLOT : 2
TPM (HEADER) : 1
LAN : 1x Intel® I219V Gigabit LAN controller
USB 3.2 PORTS (FRONT) : 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) : 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) : 2
USB 2.0 PORTS (REAR) : 4
SERIAL PORTS(FRONT) : 1
AUDIO PORTS (REAR): Realtek® ALC897 Codec
VGA : 1
HDMI : 1
DIRECTX : 12
FORM FACTOR: Mirco-ATX
OPERATING SYSTEM : Support for Windows®
