Description

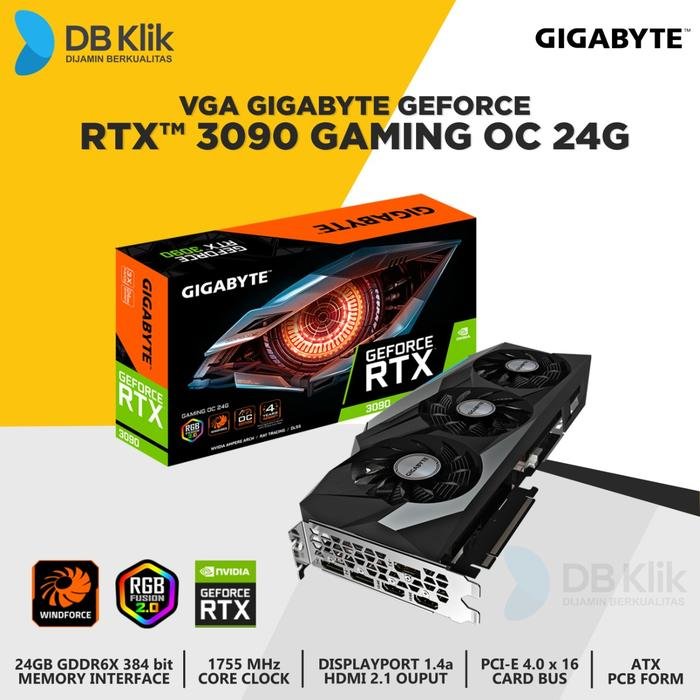

Gigabyte GeForce RTX 3090 GAMING OC 24G Graphics Card
WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE COPPER PLATE & HEAT-PIPE

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

NVIDIA NVLINK™ SUPPORT

Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming.

AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Specifications
Graphics Processing : GeForce RTX™ 3090
Core Clock : 1‎755 MHz (Reference card is 1695 MHz)
CUDA® Cores : 1‎0496
Memory Clock : 1‎9500 MHz
Memory Size : 2‎4 GB
Memory Type : GDDR6X
Memory Bus : 3‎84 bit
Memory Bandwidth (GB/sec) : 9‎36 GB/s
Card Bus : PCI-E 4.0 x 16
Digital max resolution : 7‎680×4320@60Hz
Multi-view : 4‎
Card size : L=320 W=129 H=55 mm
PCB Form : ATX
DirectX : 1‎2 Ultimate
OpenGL : 4‎.6
Recommended PSU : 7‎50W
Power Connectors : 8‎ pin*2
Output : DisplayPort 1.4a *3, HDMI 2.1 *2
SLI Support : 2‎‎-way NVIDIA NVLINK™
