Description

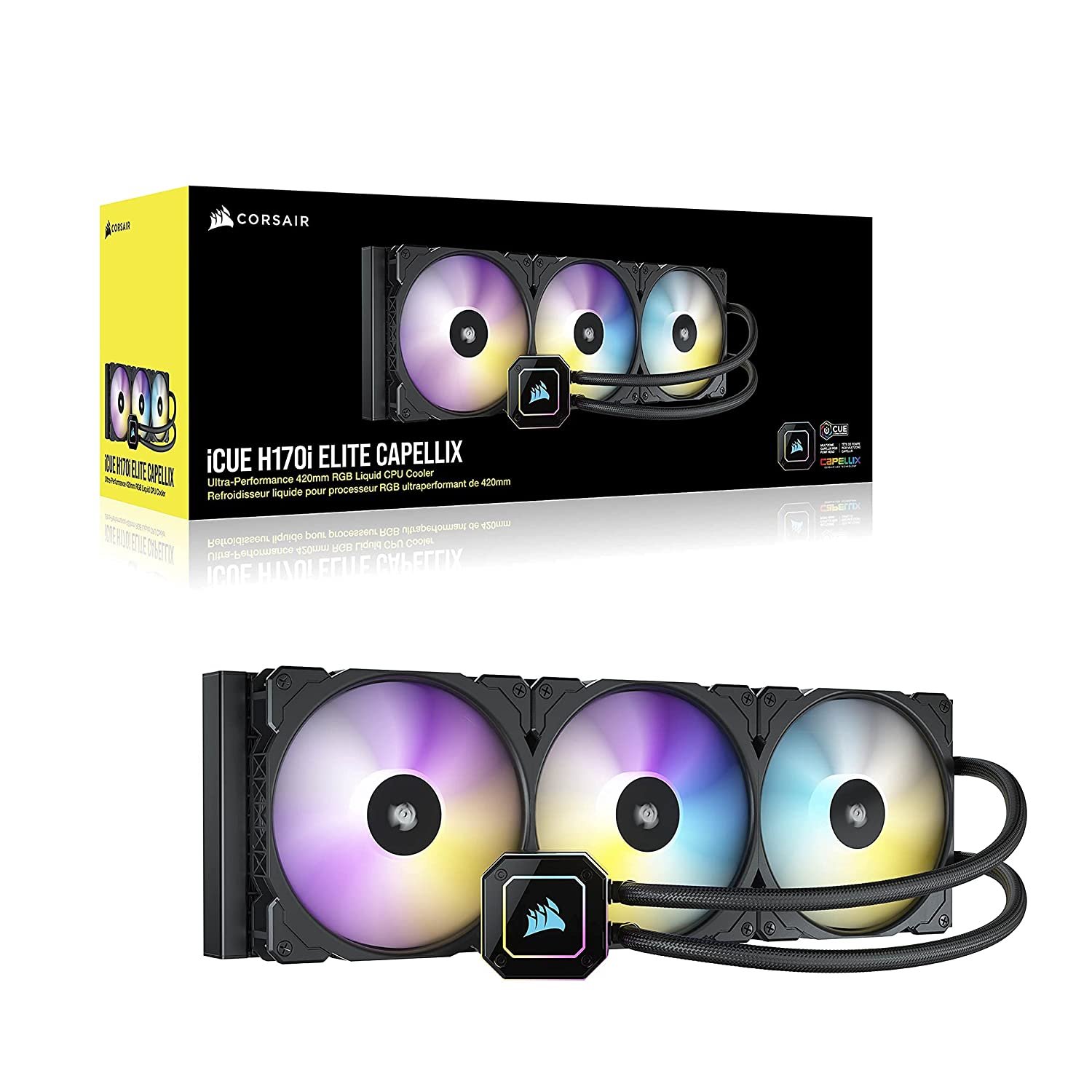

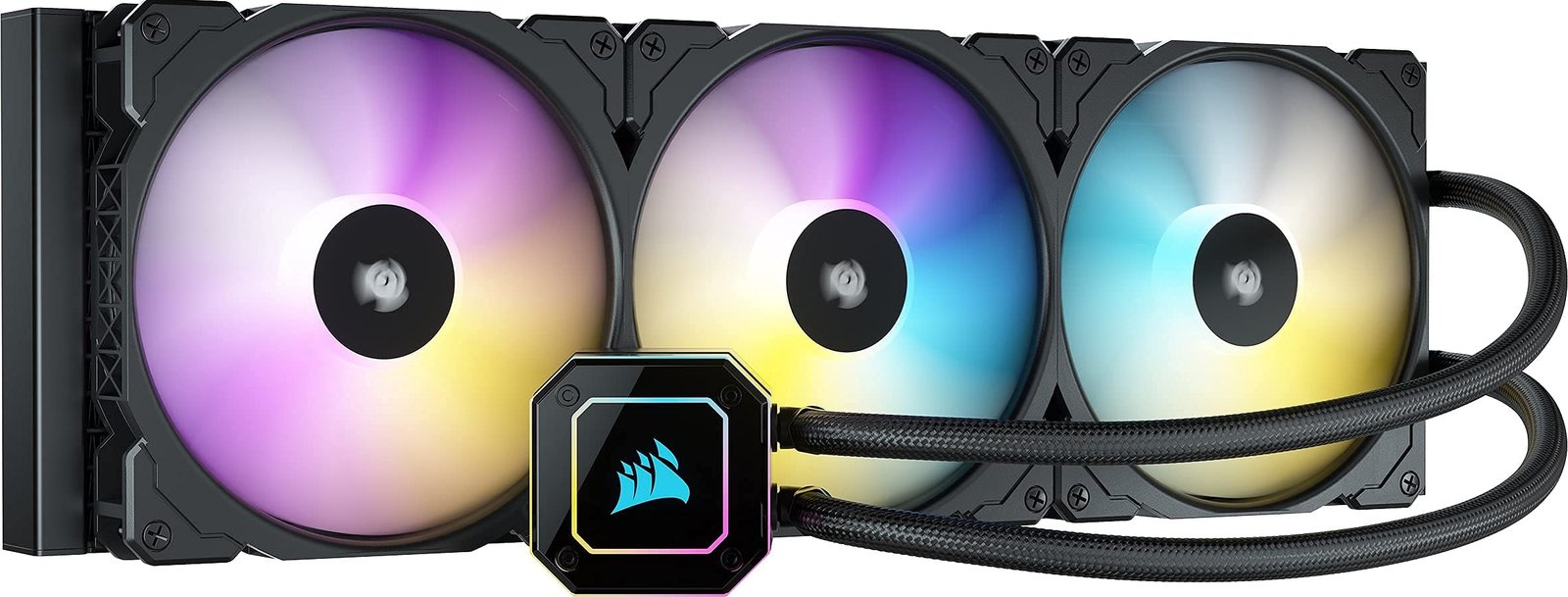

Corsair iCUE H170i ELITE CAPELLIX Liquid CPU Cooler
HIGH-PERFORMANCE RGB PUMP HEAD

The ELITE CAPELLIX cooler pump head houses 33 ultra-bright CAPELLIX RGB LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.

SPLIT-FLOW COPPER COLD PLATE

An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.

LOW-NOISE CENTRIFUGAL PUMP

Delivers a flow rate of up to 0.82L/min while generating less than 20 dBA, for extreme cooling with low noise.

CHANGE UP YOUR LOOK

Each ELITE CAPELLIX CPU cooler includes two separate pump caps. The pre-installed pump cap is a stylish, glossy black, while the alternate pump cap is more transparent to let your CAPELLIX LEDs shine through.

TURN ANY CASE INTO A SMART CASE

Harness the power of iCUE with the included iCUE Commander CORE to control the fan speed and RGB lighting for the included ML RGB fans, with the potential to control additional CORSAIR RGB fans, up to a total of six.

*Additional fans sold separately.

POWERFUL CORSAIR iCUE SOFTWARE

Adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.

MAGNETIC LEVITATION RGB FANS

CORSAIR ML RGB Series PWM fans deliver powerful airflow for extreme CPU cooling performance, with eight RGB LEDs per fan.

ZERO RPM MODE

Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely at low temperatures, eliminating fan noise.

iCUE Built-In Fan Profiles

Extreme Mode Balanced Mode Quiet Mode Zero RPM Mode

AVAILABLE IN FOUR SIZES AND PERFORMANCE LEVELS

From our dual-fan 240mm (H100i) and 280mm (H115i) units for maximum compatibility, all the way to our triple-fan 360mm (H150i) and 420mm (H170i) units for outrageous cooling performance, ELITE CAPELLIX has you covered.

EASY TO INSTALL

Modular, tool-free mounting bracket for quick and painless installation on all modern Intel® and AMD sockets.

Specifications
Cold Plate Material : Copper
Radiator Material : Aluminum
PWM : Yes
CORSAIR iCUE Compatibility : Yes
Fan Dimensions : 140mm x 25mm
Fan Speed : 2000 RPM
Weight : 1.95
Number of Fans : 3
Cooling Socket Support : Intel 115x/1200
Intel 2011/2066

AMD AM3/AM2

AMD AM4

AMD sTR4/sTRX4

Lighting : RGB
Fan Model : ML RGB Series
Noise Level : 10 – 37 dBA
