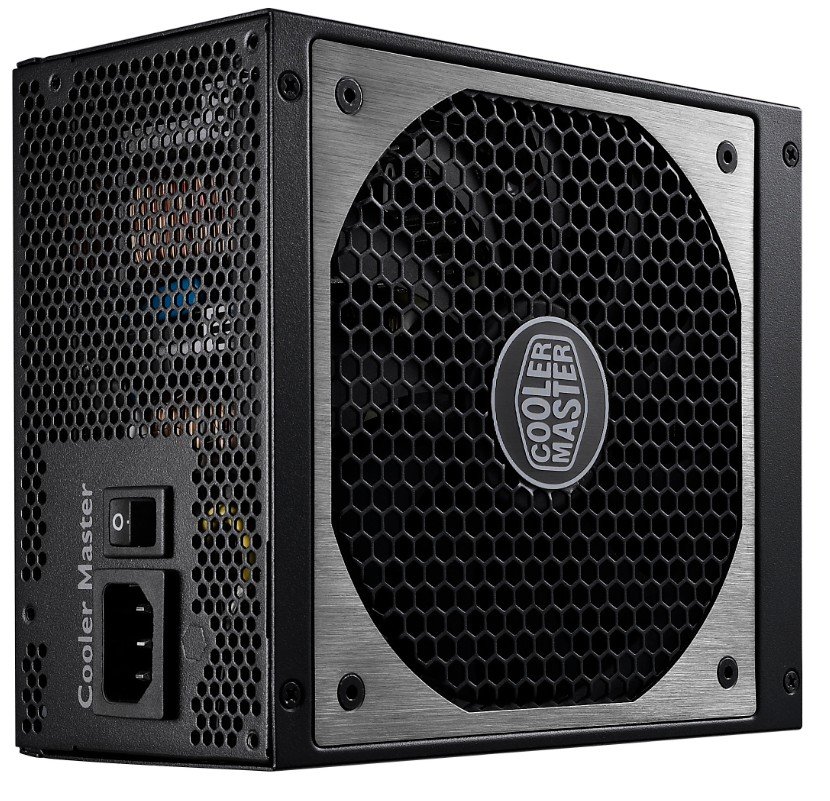

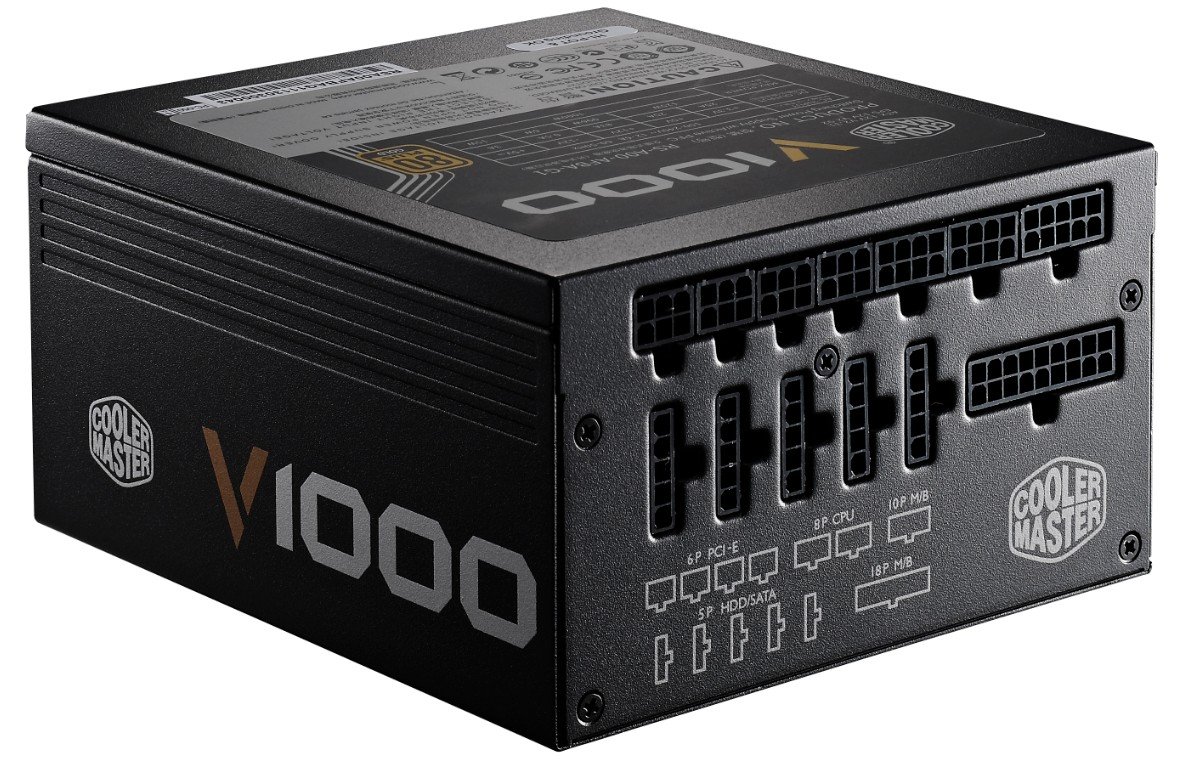

Cooler Master V Series V1000 – 80 Plus Gold PSU
Product Description
Cooler Master developed the V-series to re-ascertain its position as a leading power supply brand. It’s based on a powerful single rail platform with outstanding voltage stability, ripple suppression and efficiency. Thanks to a 135mm high quality FDB fan and a fine-tuned fan profile, V-series PSUs are extremely quiet, even under full load. And our brand new all black, extra slim flat-ribbon cables make cable management a breeze, enabling nice and clean builds with the best possible airflow

Model RS-A00-AFBA-G1
Type Intel Form Factor ATX 12V V2.31
Dimension (W x L x H) 150 x 170 x 86mm / 5.9 x 6.7 x 3.4 inch
Input Voltage 90-264Vac (Auto Range)
Input Current 12 – 6A
Input Frequency Range 60 – 50Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency 90% Typically
MTBF >100,000 Hours
Protection OVP/UVP/OPP/OTP/SCP
Output Capacity 1000W
Operation Temperature 0~40°C
Regulatory CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
Fan Silent FDB 135mm
Certifications 80 Plus Gold
Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-e 6+2 Pin x 8
SATA x 9
4 Pin Peripheral x 4
4 Pin Floppy x 1
