Description

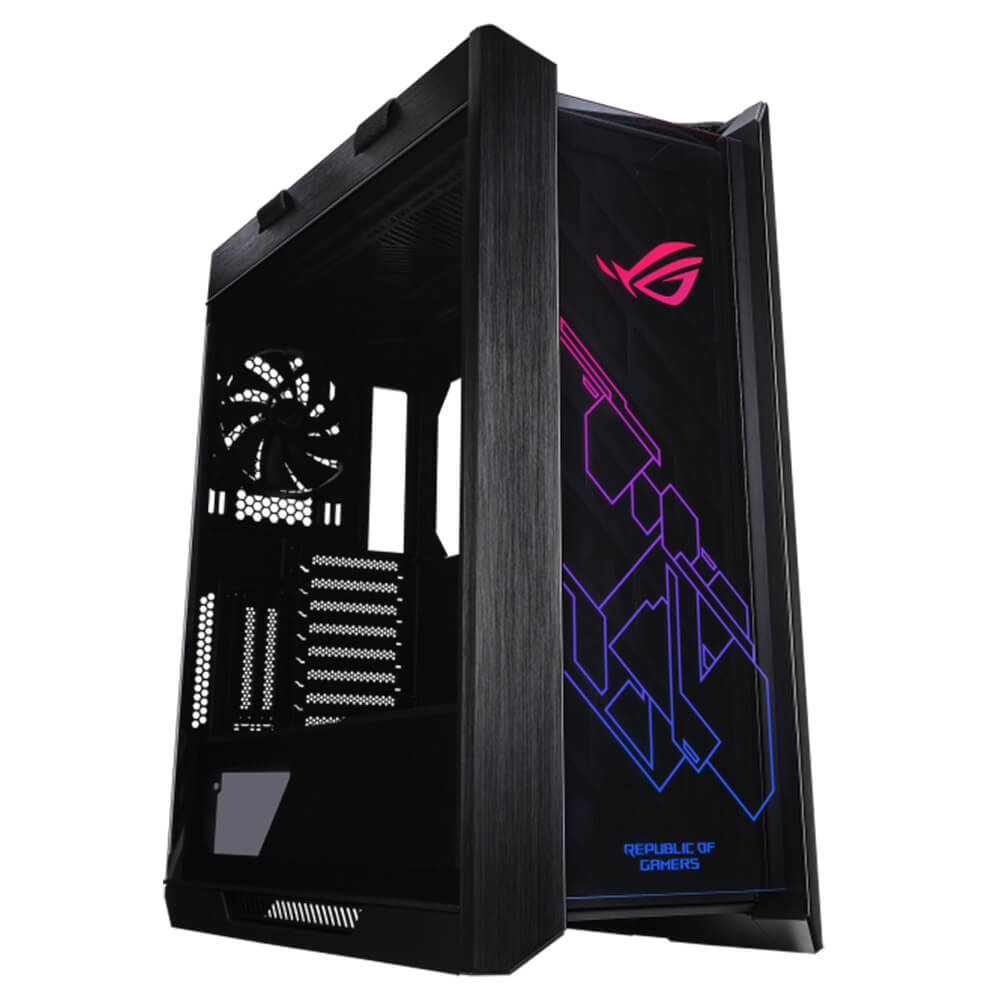

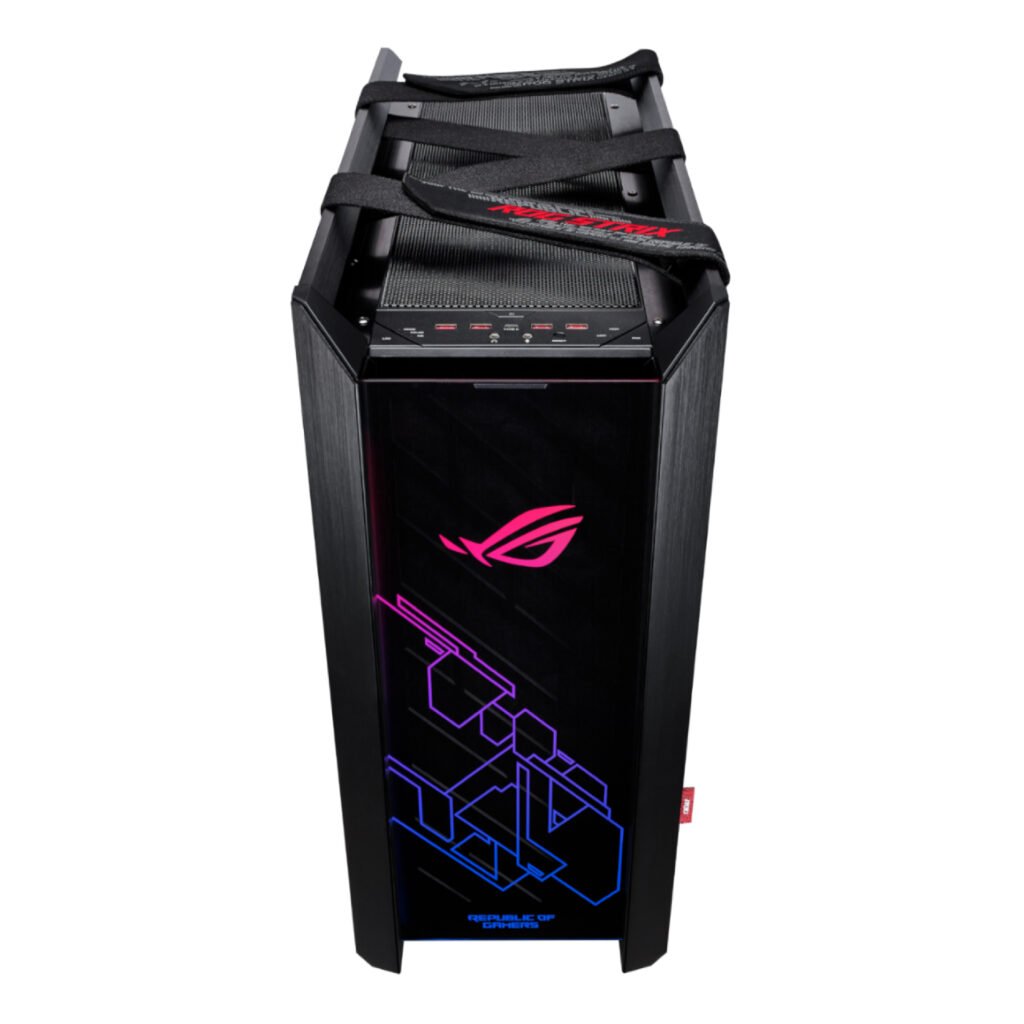

Asus ROG Strix Helios RGB ATX/EATX mid-tower Gaming Case
ROG Strix Helios

MADE FOR SHOWCASE BUILDS

ROG Strix Helios is a premium mid-tower gaming case with three tempered-glass panels, refined aluminum frame and integrated front-panel RGB lighting. Built-in cable management, including a multifunction cover with GPU braces, keeps the interior sharp and tidy. Engineered for expandability and performance, it’s ready for an up to EATX motherboard and serious water-cooling setups – making it the perfect choice for a classic ROG showcase build.

PREMIUM DESIGN & AESTHETICS

ROG Strix Helios is made for showcase builds with three 4mm, smoked tempered-glass panels fitted in a refined brushed-aluminum frame. A stunning display of dynamic RGB lighting is integrated into the front panel to outshine the competition.

AURA SYNC RGB LIGHTING

Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, ROG Strix Helios can cast millions of colors and a range of effects that can be synchronized with a vast ecosystem of components to augment your build.

EFFORTLESS CABLE MANAGEMENT

Multifunction Cover

A multifunction cover with GPU braces cleverly hides cabling, provides sturdy support to graphics cards and allows for an SSD or ROG Aura Terminal to be mounted for display. Its position can be adjusted to accommodate an ATX or EATX motherboard.

PSU Shroud

The flexible two-piece PSU shroud has a front cut-out to enable compatibility with ROG Thor or other OLED-integrated power supplies.

Rear Cable Cover

A translucent rear cover conceals unsightly wiring and allows illumination from the ROG Aura Terminal, SSDs or other devices with RGB lighting to shine through.

EASY INSTALLATION & MAINTENANCE

ROG Strix Helios is designed with multiple easy installation mechanisms to provide the smoothest building experience, even for DIY novices. Keeping your rig clean is made easy with built-in dust filters and easy access to all areas.

Panel Release Buttons

One push of the release buttons at the rear of the case lets you swing down the side panels for instant, tool-less access to the interior. The tempered-glass panels are bottom-hinged, meaning they will remain supported at an angle until you’re ready to detach them completely.

Fans and Radiator Mounts

Two removable brackets let you easily mount fans and radiators before installing the whole unit into the case, simplifying your building experience.

Dust Filter

Removable filters on the top, front and underside provide all-round protection from dust, and make short work of cleaning and maintenance.

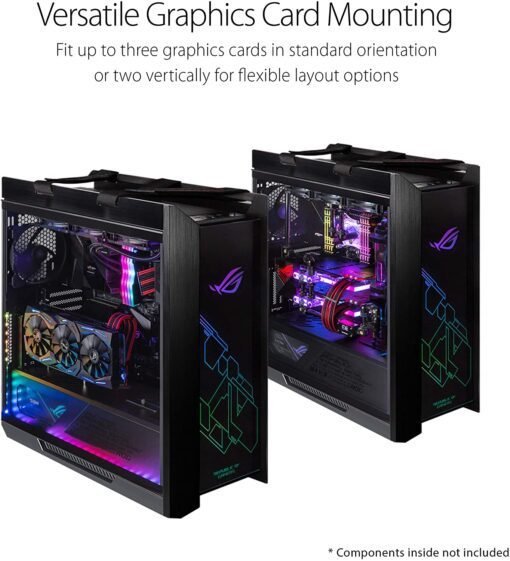

VERSATILE GRAPHICS CARD MOUNTING

Fit up to three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket.

READY FOR SERIOUS COOLING

Built to perform and primed for expansion, ROG Strix Helios can accommodate an up to EATX motherboard and offers ample space for hardcore water-cooling setups. With support for up to 420mm front and 360mm top radiators, room is also reserved for installing a water-cooling pump and reservoir.

ADVANCED I/O PANEL

The I/O panel is loaded with connectivity, including a reversible USB 3.1 Type-C™ port. It also features dedicated fan speed and RGB lighting controls for making adjustments on-the-fly.

COMFORTABLE CASE HANDLES

Easily carry your prized build to LAN parties using the ergonomic and stylish fabric handles that are rigorously tested to support up to 50 kg.

Product Specifications:
Dimensions : 250 x 565 x 591 (WxDxH)
Case Size : ATX Mid Tower
Form Factor : ATX/micro ATX/Mini ITX/EATX (12”x10.9”)
Drive Bays
2 x Int x 2.5”/3.5” Combo Bay
4 x Int x 2.5” Bay
System Fan Support
Pre-installed Fans
Front: 3 x 140mm
Rear: 1 x 140mm
Expansion Slots : 8+2 (additional vertical)
Weight : N.W. 18 kg
Color : Black
Front I/O Ports
1 x USB 3.1 Gen 2 (Type-C)
4 x USB 3.1 Gen 1
1 x Headphone
1 x Microphone
LED & Fan Control Buttons
Power Supply : ATX
Note
Cooling Support
Front: 3 x 140mm/ 3 x 120mm (Radiator + Fan Thickness: Max. 90mm)
Top: 2 x 140mm/ 3 x 120mm (Radiator + Fan Thickness: Max. 60mm)
Rear: 1 x 140mm/120mm
Radiator Support
Front: 120, 140, 240, 280, 360, 420 mm
Top 120, 140, 240, 280, 360 mm
Rear: 120, 140mm
Maximum GPU Length: 450 mm
(Riser Cable above 200mm in length is required for one GPU install in vertical position)
Maximum CPU Cooler Height: 190 mm
Maximum PSU Length: 220 mm
Removable Dust Filters: Front: Slide-Out / Top: Slide-Out / Bottom: Slide-Out
Cable Routing: Max. 33 mm
3.5”/2.5” Drive Bays: Up to 4pcs (Pre-install 2pcs)
2.5” Drive Bays: Up to 9pcs (Pre-install 4+1pcs)
