Description

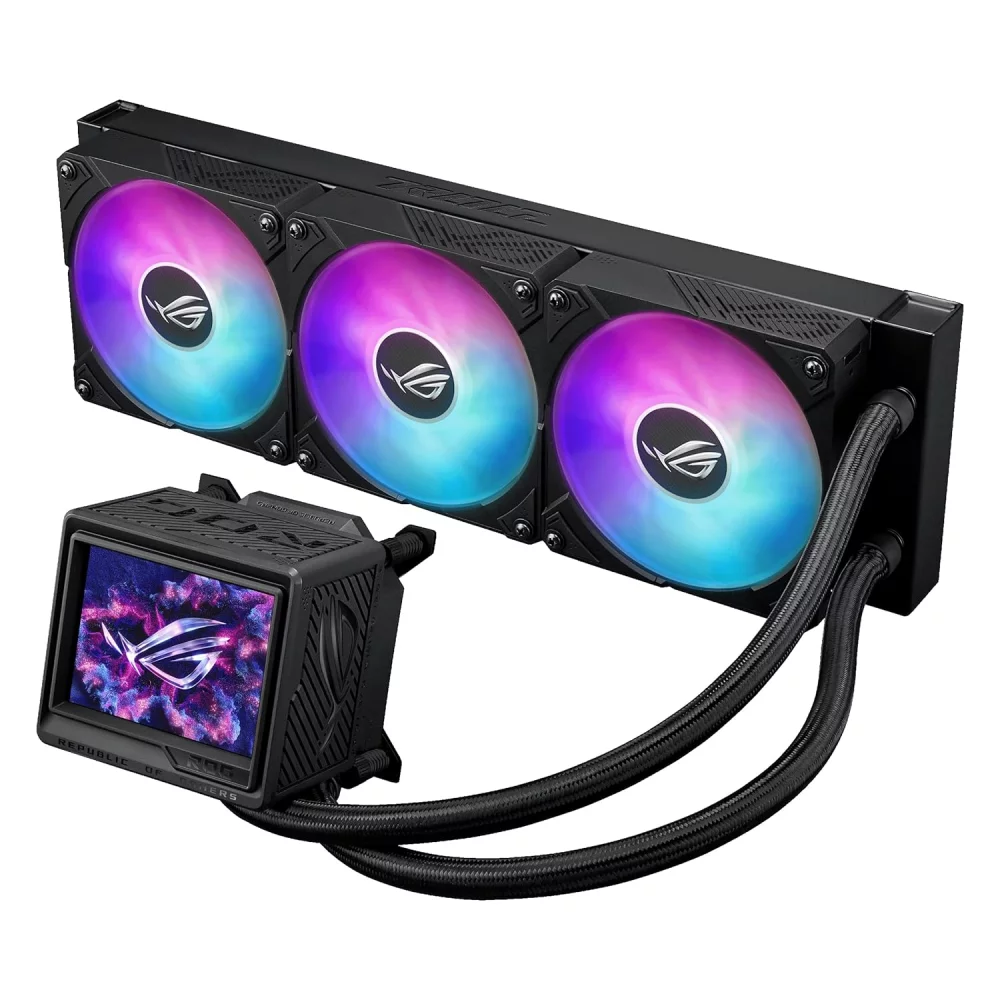

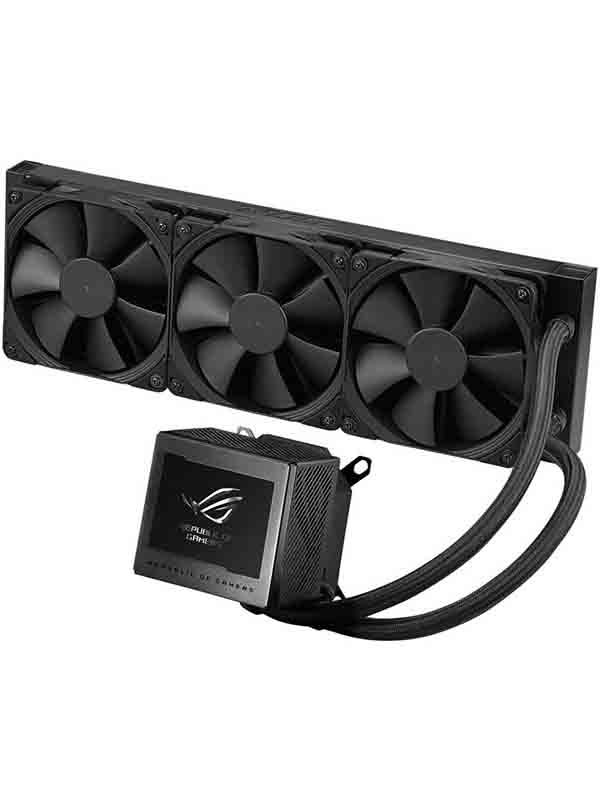

Asus ROG Ryujin 360 Lliquid CPU Cooler
ROG Ryujin is the flagship all-in-one cooler for high-end builds designed to deliver the best thermal performance. Featuring Noctua Industrial PPC fans for cooler and quieter operation, plus an embedded fan in the pump housing for additional cooling to the VRM and M.2, ROG Ryujin keeps your system running its absolute best. Coupled with a LiveDash OLED that displays system stats or custom graphics and Aura Sync RGB lighting, ROG Ryujin is the ultimate thermal solution destined to become a vital part of your gaming rig.

COOL TO THE CORE

Noctua Industrial iPPC fan

ROG Ryujin meets the thermal challenges of the latest multi-core CPUs with industrial-grade Noctua iPPC-2000 PWM fans on the radiator that deliver high performance and low-noise operation. The 120-mm fans generate 122 m3h of airflow at 2,000 RPM yet are extremely efficient with a 29.7-dB(A) acoustic footprint that’s much quieter than competing fans.

Pump embedded fan

While powerful, liquid cooling does not circulate air around the CPU socket like a traditional heatsink and fan. ROG Ryujin overcomes this limitation with a 60mm fan embedded in the pump housing that circulates air to the CPU VRMs, M.2 slot and surrounding components to dramatically reduce temperatures for improved performance and stability.

NEXT LEVEL OF CUSTOMIZATION

LiveDash OLED

ROG Ryujin is the world’s first AIO cooler to feature an embedded 1.77-inch LiveDash color OLED that displays useful system information*, such as temperatures, voltages, fan speeds, or frequencies. You can also customize LiveDash to display a customized image or animation** highlighting your clan insignia or gamertag.

Complete LiveDash customizability

The LiveDash software utility lets you easily customize ROG Ryujin’s LiveDash OLED display and RGB lighting effects. Select which system stats to monitor, choose personalized GIFs and images to display, and control RGB lighting from an intuitive interface that arranges settings in a step-by-step flow from top to bottom.

Subtle, striking, sleek

Infused with Aura RGB lighting in dramatic slash patterns on the shroud, Ryujin exudes a vibrant glow that highlights the CPU at the heart of your build

PERFECT SYNCHRONIZATION

The impact of Aura RGB lighting can be further enhanced with ASUS Aura Sync, which allows harmonized lighting effects with other Aura-enabled system components and external accessories. Aura software give you complete control of lighting across all compatible devices, letting you dial in the vibe you want to display quickly and easily.

EXTENDED COMPATIBILITY

ROG Ryujin is compatible with a wide range of Intel and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38cm of tubing to make mounting and routing easier.

CPU socket support

Intel : LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066

AMD : AM4, TR4*

*the mounting bracket is bundled with TR4 processor package

Product Specifications
Water Block

Water Block Dimension: 100 x 100 x 70 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066；AMD: AM4, TR4*
Radiator

Radiator Dimension: 394 x 121 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm
Fan

Fan: 3 x Noctua NF-F12 industrialPPC 2000 PWM
Fan size: 3 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 450 ~ 2000 RPM +/- 10 %
Fan Static Pressure: 3.94 mmH2O
Fan Air Flow: 71.6 CFM / 121.8 m3h
Fan Noise: 29.7 dB(A)
Control Mode: PWM
Special Features

OLED Display: 1.77 ” Full Color OLED
AURA Sync Support: Yes
Embedded FAN: Y
Embedded Fan Speed: 4800 RPM +/- 10 %
Embedded Fan Air Pressure: 3.23 mmH2O
Embedded Fan Air Flow: 19.41 CFM
Embedded Fan Noise: 31 dB(A)
Compatibility

Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*
Package Content

ROG RYUJIN 360 Liquid Cooler
Accesory Pack of Scews and brackets
3 x 120mm Noctua NF-F12 iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
