Description

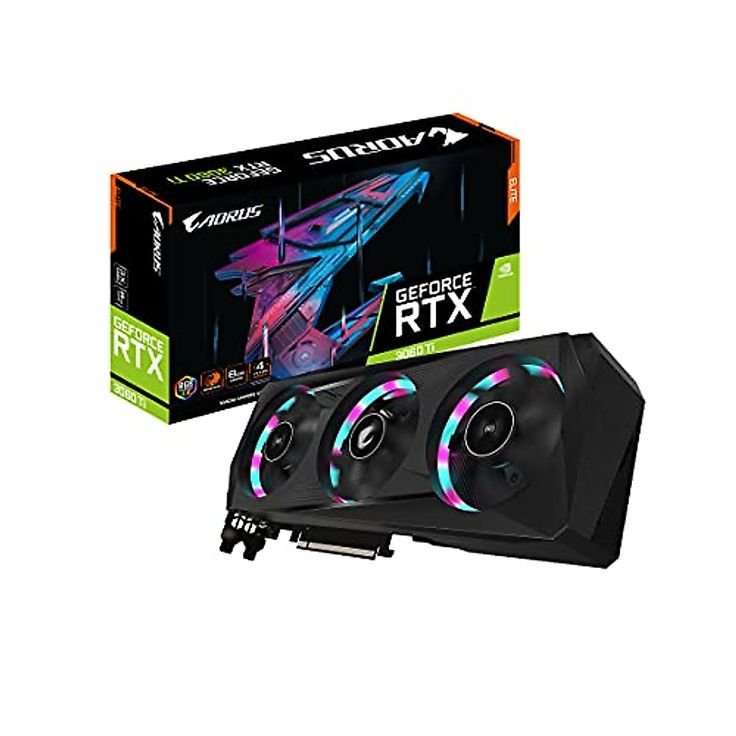

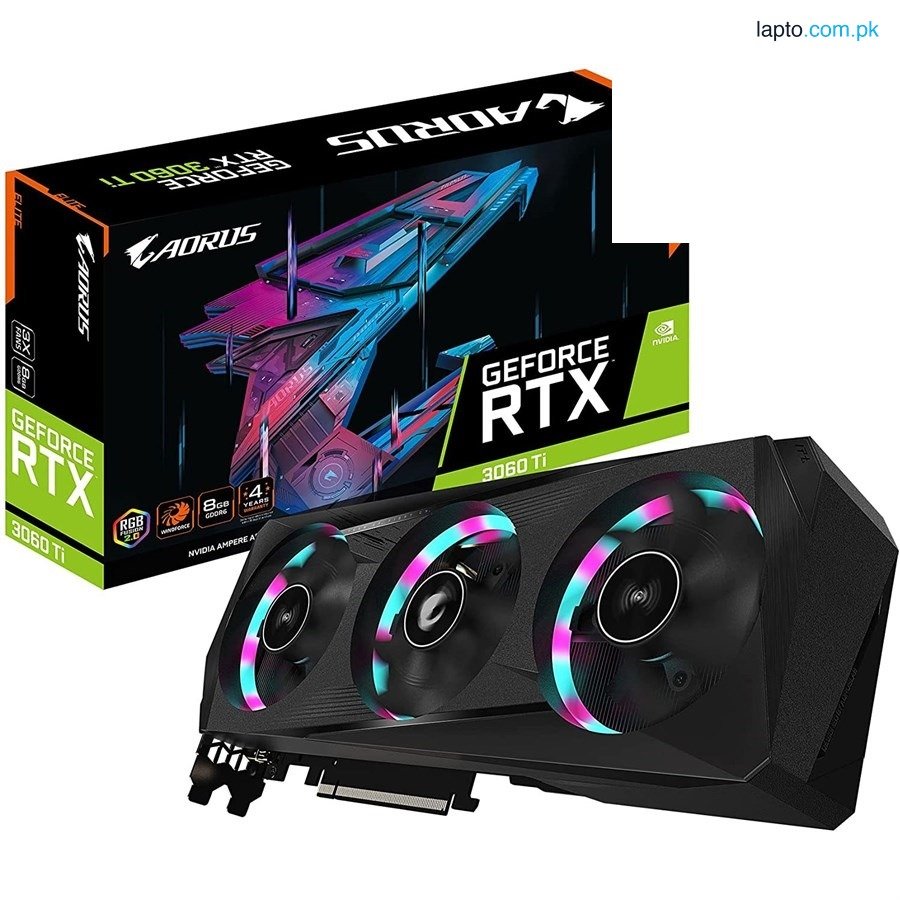

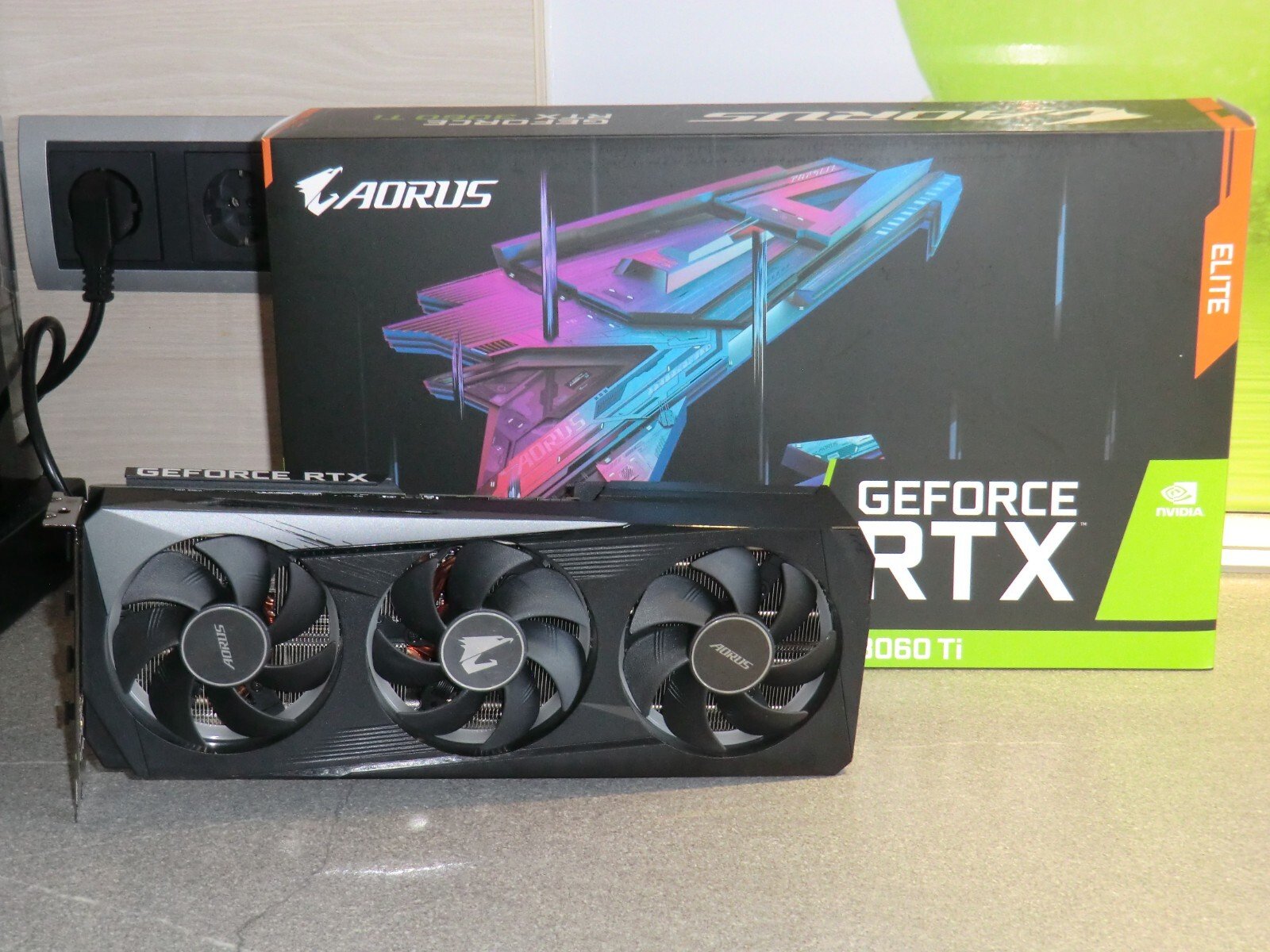

AORUS GeForce RTX™ 3060 Ti ELITE 8G Graphics Card
DESIGN CONCEPT

Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night.

The new era of esports has arrived.

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The LED fan indicator can provide an instant display of fan status.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE

GeForce RTX™ 3060 Ti with 8G memory and 448 GB/s memory bandwidth has 4864 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

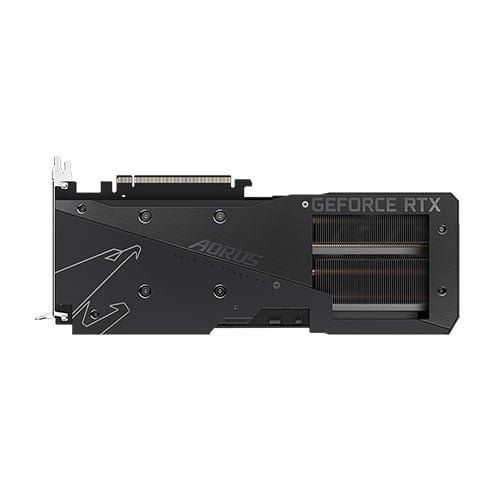

METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

POWER INDICATORS

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

EXCELLENCE

Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

EXTREME OVERCLOCKING
ULTRA DURABILITY
FRIENDLY PCB
AORUS ENGINE
ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Specifications
Graphics Processing : GeForce RTX™ 3060 Ti
Core Clock : 1785 MHz (Reference Card : 1665 MHz)
CUDA® Cores : 4864
Memory Clock : 14000 MHz
Memory Size : 8 GB
Memory Type : GDDR6
Memory Bus : 256 bit
Memory Bandwidth (GB/sec) : 4‎48 GB/s
Card Bus : PCI-E 4.0 x 16
Digital max resolution : 7680×4320
Multi-view : 4
Card size : L=296 W=117 H=56 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Recommended PSU : 650W
Power Connectors : 8 pin*1 + 6 pin*1
Output : DisplayPort 1.4a *2
HDMI 2.1*2
SLI Support : N/A
Accessories
Quick Guide
Metal sticker
